MMA-10G Network Gateways

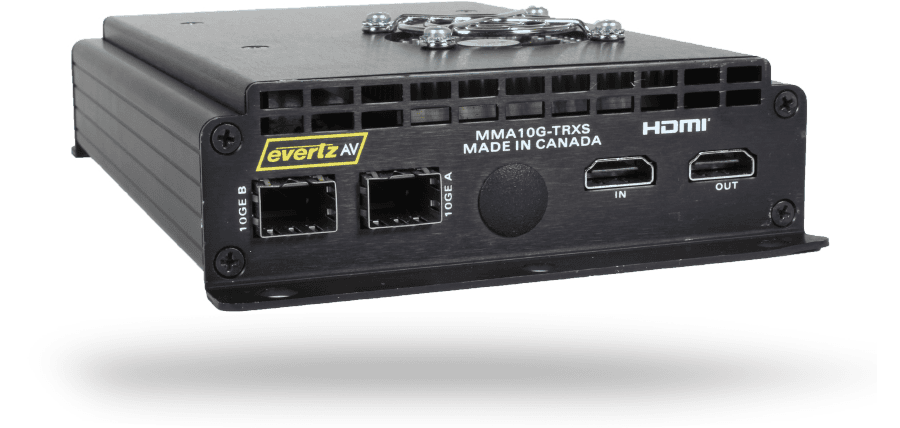

MMA10G-TRXS-UCPT - Standalone Transceiver Gateway w/ USB Capture
The MMA10G-TRXS-UCPT standalone 10GE transceiver gateway is a single device that can either be used as a receiver, a transmitter, or both at the same time. In additon to its AV transport capabilites, the MMA10G-TRXS-UCPT has been designed to facilitate integration of complex AV media flows with Unified Collaboration applications. Operating system and application agnostic, the new gateways require no drivers and are plug-and-play with Microsoft Windows, MAC, and Linux workstations. Providing an uncompressed, no latency USB 3 Type-C output, the gateways appear as an audio-enabled webcam to your favorite conferencing application enabling the use of high quality HDMI or SDI PTZ cameras and Pro AV multiview authoring solutions for Broadcast-quality compositions in an Enterprise setting.
MMA10G-TRS4K-N - Standalone IPMX-Ready 4K/60 HDMI Gateway
The MMA10G-TRS4K-N standalone 10GE gateway accepts one HDMI input and one HDMI output. In addition to one HDMI input and output the MMA10G-TRS4K-N also accepts a discrete audio input and output. The MMA10G-TRS4K-N is a gateway that conforms to the emerging AV-over-IP open standard IPMX. EvertzAV’s line of IPMX-ready gateways provide synchronized, real-time broadcast-quality AV over IP while ensuring the ProAV interoperability requirements of today and tomorrow are met.
MMA10G-TRS4K-2-N - Standalone IPMX-Ready 4K/60 Dual HDMI Gateway
The MMA10G-TRS4K-2-N standalone 10GE gateway accepts up to two HDMI inputs or provides up to two HDMI outputs (software defined), in addition to audio and USB. In addition to two HDMI inputs or outputs, the -2U-N version of the product offers USB 2.0, which can be sent at full bandwidth over the 10GE interface. The MMA10G-TRS4K-2-N is a gateway that conforms to the emerging AV-over-IP open standard IPMX. EvertzAV’s line of IPMX-ready gateways provide synchronized, real-time broadcast-quality AV over IP while ensuring the ProAV interoperability requirements of today and tomorrow are met.
MMA10G-TRS4K-2x2-N - Standalone IPMX-Ready 4K/60 Dual HDMI Transceiver w/ AUX Inputs
The MMA10G-TRS4K-2x2-N standalone 4K/60 dual HDMI transceiver accepts up to two HDMI inputs (along with two auxiliary HDMI inputs) and provides up to two HDMI outputs, in addition to audio and USB HID. The MMA10G-TRS4K-2x2U-N version of the product offers USB 2.0 (Host or Device), which can be sent at full bandwidth over the 10GE interface. The MMA10G-TRS4K-2x2-N is a gateway that conforms to the emerging AV-over-IP open standard IPMX. EvertzAV’s line of IPMX-ready gateways provide synchronized, real-time broadcast-quality AV over IP while ensuring the ProAV interoperability requirements of today and tomorrow are met.
MMA10G-TRM4K-N - Modular IPMX-Ready 4K/60 HDMI Gateway
The MMA10G-TRM4K-N modular 10GE gateway accepts a single HDMI input and HDMI output, in addition to audio and HID. The MMA10G-TRM4K-N is a modular device and is installed in an Evertz rack mount modular frame. In addition to an HDMI input and output the MMA10G-TRM4K-N can send and receive embedded audio, discrete audio, and HID USB over the 10GE infrastructure. The MMA10G-TRM4K-N is a gateway that conforms to the emerging AV-over-IP open standard IPMX. EvertzAV’s line of IPMX-ready gateways provide synchronized, real-time broadcast-quality AV over IP while ensuring the ProAV interoperability requirements of today and tomorrow are met.
MMA10G-TRM4K-2-N - Modular IPMX-Ready 4K/60 Dual HDMI Gateway
The MMA10G-TRM4K-2-N modular 10GE gateway accepts up to two HDMI inputs or provides up to two HDMI outputs (software defined), in addition to audio and USB. The MMA10G-TRM4K-2-N is a modular device and is installed in an Evertz rack mount modular frame. In addition to two HDMI inputs or outputs, the -2U version of the product offers USB 2.0, which can be sent at full bandwidth over the 10GE interface. The MMA10G-TRM4K-2-N is a gateway that conforms to the emerging AV-over-IP open standard IPMX. EvertzAV’s line of IPMX-ready gateways provide synchronized, real-time broadcast-quality AV over IP while ensuring the ProAV interoperability requirements of today and tomorrow are met.
MMA10G-TRS4K-2A-HDMI - Standalone 4K/60 Dual HDMI Gateway w/ Dante™ Audio
Using 10Gbps Ethernet, the MMA10G-TRS4K-2A-HDMI-HDMI encapsulates video, audio, USB HID, and Ethernet control data at the same time. In addition to its HDMI, analog, and S/PDIF audio capabilities, the MMA10G-TRS4K-2A-HDMI-HDMI supports Dante audio, facilitating up to 32x32 simultaneous Dante audio streams. This allows for local HDMI embedded or remote IP-ingested audio streams to be routed as Dante audio or vice versa (i.e. Dante audio streams to be routed to the local HDMI output port or transported via IP to remote destinations).
MMA10G-TRS4K-12G - Standalone 4K/60 12G-SDI/HDMI Gateway
The MMA10G-TRS4K-12G is a versatile 12G-SDI/HDMI gateway that has three main modes of operation: dual transmit mode, dual receive mode, and single transceive mode. It also integrates two HDMI 2.0a inputs (with an additional auxiliary input) and two HDMI 2.0A output ports allowing for ultra low latency HDMI transport (please note, SDI and HDMI cannot be used concurrently). The MMA10G-TRS4K-12G is a standalone device, which is compact and quiet and can be installed in various in-room locations, including behind monitors, under / inside desks and lecterns, and floor boxes.
MMA10G-TRS4K-2D - Standalone 4K/60 Dual HDMI Gateway w/ Dolby® and DTS® Decode
The MMA10G-TRS4K-2D standalone 10GE gateway accepts up to two HDMI inputs or provides up to two HDMI outputs (software defined), in addition to audio and USB HID. The MMA10G-TRS4K-2D is a standalone device which is compact and quiet and can be installed in various in-room locations, including behind monitors, under / inside desks and lecterns, and floor boxes.
MMA10G-TRXS-5G - Standalone 5G HEVC / H.264 Encoder / Decoder
The MMA10G-TRXS-5G is a standalone 5G-enabled HEVC / H.264 encoder/decoder that features one HDMI input and one HDMI output with the option of installing a 12G SDI SFP+ transceiver to allow for the transport of SDI video and embedded audio. The MMA10G-TRXS-5G can simultaneously encode and decode video signals with a maximum resolution of up to 4K60 (10-bit, 4:2:2). The MMA10G-TRXS-5G is a compact and fanless standalone device utilizing 5G wireless technology – an ideal gateway for applications such as live streaming, mobile broadcasting, mobile surveillance, and remote operation.
MMA10G-TRXS-HC - Standalone HEVC / H.264 Encoder / Decoder
The MMA10G-TRXS-HC is a standalone HEVC / H.264 encoder / decoder that features one HDMI input and one HDMI output with the option of installing a 12G SDI SFP+ transceiver to allow for the transport of SDI video and embedded audio. The MMA10G-TRXS-HC can simultaneously encode and decode video signals with a maximum resolution of up to 4K60 (10-bit, 4:2:2). The MMA10G-TRXS-HC is a compact and fanless standalone device utilizing robust encode/decode capabilities - an ideal gateway for various applications such as live streaming, surveillance, broadcasting, and more.
MMA10G-TRS4K-4x2 - Standalone 4K/60 Dual HDMI Transceiver
The MMA10G-TRS4K-4x2 standalone 4K/60 dual HDMI transceiver accepts up to four HDMI inputs and provides up to two HDMI outputs, in addition to audio and USB HID. The MMA10G-TRS4K-4x2 is a standalone device which is compact and quiet and can be installed in various in-room locations, including behind monitors, under/inside desks and lecterns, and floor boxes. The MMA10G-TRS4K-4x2U version of the product offers USB 2.0 (Host or Device), which can be sent at full bandwidth over the 10GE interface.
MMA10G-TRXS-USB2 - Standalone Transceiver Gateway w/ USB 2.0
The MMA10G-TRXS-USB2 standalone 10GE transceiver gateway is a single device that can either be used as a receiver or a transmitter or both at the same time. Due to the bi-directional nature of 10GE the MMA10G-TRXS-USB2 can be used to both send and receive HDMI, SDI, audio, USB HID, and USB 2.0 data. Additionally, an RS-232/RS-422 port is available for serial communication, transport, and control. Reduce decision making at design time by simply adding up the number of devices that need to either send or receive as the MMA10G-TRXS-USB2 can be used for any connection point.
MMA10G-HUB-USB - 10GE Standalone USB 2.0 Hub
The MMA10G-HUB-USB is a cost-effective, highly secure, standalone USB 2.0 hub designed for connecting and extending USB devices over a 10GE IP network. The MMA10G-HUB-USB can be purchased with up to six USB modules; each module encompassing four USB ports that can share the respective module's full USB 2.0 hi-speed data rate of 480 Mbps. The 10GE links provide more than enough bandwidth to comfortably transport up to six USB 2.0 data streams simultaneously, with each data stream bound to its own unique IP, allowing for completely independent routing capabilities.
MMA10G-HUBA-32x32 - Network-Enabled 32x32 Analog Audio Switch with Dante™
The MMA10G-HUBA-32x32 is a versatile professional audio switch designed to support seamless internal switching from any of its inputs to any of its outputs. With 32 mono channel (16 balanced stereo) line level analog audio inputs and outputs, Dante audio interoperability, TDM audio functionality, and support for 32 ST302M stereo pairs on both of its 10GE ports, the MMA10G-HUBA-32x32 is an audio switching powerhouse.
MMA10G-HUB2 - In Room AV Switch
The MMA10G-HUB2 is the latest product addition to Evertz MMA-10G Network based AV distribution series. Evertz MMA10G-HUB2 is a powerful HDMI/HDBaseT router with 10GE extension ports enabling local routing to converge within the larger facility. The HUB2 can easily connect a single room to a facility, thereby unleashing a world of possibilities for collaboration, resource sharing and connectivity.
MMA10G-TRS4K-HDMI - Standalone 4K/60 HDMI Gateway
The MMA10G-TRS4K-HDMI standalone 10GE gateway accepts one HDMI input and one HDMI output. The MMA10G-TRS4K-HDMI is a standalone device which is compact and quiet and can be installed in various in room locations, including behind monitors, and under/inside desks, lecterns, and floor boxes. In addition to one HDMI input and output the TRS4K-HDMI also accepts a discrete audio input and output.
MMA10G-TRS4K-2-HDMI - Standalone 4K/60 Dual HDMI Gateway
The MMA10G-TRS4K-2-HDMI standalone 10GE gateway accepts up to two HDMI inputs or provides up to two HDMI outputs (software defined), in addition to audio and USB. The MMA10G-TRS4K-2-HDMI is a standalone device which is compact and quiet and can be installed in various in-room locations, including behind monitors, under/inside desks and lecterns, and floor boxes. In addition to two HDMI inputs or outputs, the -2U version of the product offers USB 2.0, which can be sent at full bandwidth over the 10GE interface.
MMA10G-TRS4K-2UH-HDMI - Standalone 4K/60 Dual HDMI Gateway w/ USB Host Port
The MMA10G-TRS4K-2UH-HDMI standalone 10GE gateway accepts up to two HDMI inputs or provides up to two HDMI outputs (software defined), in addition to audio and USB. The MMA10G-TRS4K-2UH-HDMI is a standalone device which is compact and quiet and can be installed in various in-room locations, including behind monitors, under/inside desks and lecterns, and floor boxes. In addition to two HDMI inputs or outputs, the MMA10G-TRS4K-2UH-HDMI offers a USB host port, which can be sent at full bandwidth over the 10GE interface.
MMA10G-TRM4K - Modular 4K/60 HDMI Gateway
The MMA10G-TRM4K modular 10GE gateway accepts a single HDMI input and HDMI output, in addition to audio and HID. The MMA10G-TRM4K is a modular device and is installed in an Evertz rack mount modular frame. This approach offers flexibility and density as well as a secure and reliable solution for mounting next to servers. In addition to an HDMI input and output the MMA10G-TRM4K can send and receive embedded audio, discrete audio, and HID USB over the 10GE infrastructure.
MMA10G-TRM4K-2 - Modular 4K/60 Dual HDMI Gateway
The MMA10G-TRM4K-2 modular 10GE gateway accepts up to two HDMI inputs or provides up to two HDMI outputs (software defined), in additiona to audio and USB. The MMA10G-TRM4K-2 is a modular device and is installed in an Evertz rack mount modular frame. This approach offers flexibility and density as well as a secure and reliable solution for mounting next to servers. In addition to two HDMI inputs or outputs, the -2U version of the product offers USB 2.0, which can be sent at full bandwidth over the 10GE interface.
MMA10G-TRM4K-12G - Modular 4K/60 12G-SDI/HDMI Gateway
The MMA10G-TRM4K-12G is a versatile 10GE SDI/HDMI gateway that has three main modes of operation: dual transmit mode, dual receive mode, and single transceive mode. It also integrates two HDMI 2.0a input and two HDMI 2.0a output ports allowing for ultra low latency HDMI transport. The MMA10G-TRM4K-12G is a modular device and is installed in an Evertz rack mount modular frame. This approach offers flexibility and density as well as a secure and reliable solution for mounting next to servers.
MMA10G-TRM4K-4S - Modular 4K/60 SDI / HDMI Bridge
The MMA10G-TRM4K-4S is a versatile 10GE SDI/HDMI bridge that has four modes of operation: 4K SDI transmit mode, 4K SDI receive mode, 4K individual receive mode, and SDI individual transmit mode. The MMA10G-TRM4K-4S is a modular device and is installed in an Evertz rack mount modular frame. This approach offers flexibility and density as well as a secure and reliable solution for mounting next to servers.
MMA10G-IPGM-6 - Modular Bi-directional SDI Gateway
The MMA10G-IPGM-6 provides a bulk SDI gateway for both capturing and providing SDI video signals. The IPGM-6 offers up to six 3Gbps capable SDI inputs and six 3Gbps capable SDI outputs using two 10GE ports. What makes the IPGM-6 unique is its built in scaling capability, allowing the IPGM-6 to convert any resolution input or output to the correct SMPTE raster size required.
