MMA10G-TRXS
Standalone Transceiver Gateway
Key Features
- One HDMI input and one HDMI output (HDMI type A)
- Resolution up to 3840x2160p @ 30 Hz
- Customizable EDID tables
- Picture-in-Picture (PiP) functionality
- Ultra low latency transport over 10GE links
- SDI input/output support available on MMA10G-TRXS-S
- Full integration with MAGNUM-AV management system
- Remote monitoring capabilities using SNMP protocol
- Web-based configuration
Standalone 10GE Transceiver
The MMA10G-TRXS standalone 10GE transceiver gateway is a single device that can either be used as a receiver or a transmitter or both at the same time. Due to the bi-directional nature of 10GE the TRXS can be used to both send and receive HDMI, SDI, audio, and data. Reduce decision making at design time by simply adding up the number of devices that need to either send or receive as the MMA10G-TRXS can be used for any connection point. The dual 10GE ports of the TRXS can be used to daisy-chain more than one device together saving ports on the switch fabric.
Reliable AV Transport
Using 10Gbps Ethernet the MMA10G-TRXS both encapsulates and de-encapsulates video and audio at the same time. The MMA10G-TRXS has two HDMI ports, a receive and transmit and supports resolutions of up to 3840x2160p @ 30 Hz. The MMA-TRXS supports both embedded audio on HDMI as well as a discrete audio input. A USB connection is provided to supply HID device connectivity over the MMA-10G network. No compression is used, therefore the video and audio remain at their highest quality with no latency upon delivery.
EDID and Scaling
The MMA10G-TRXS utilizes high quality scaling engines that allow it to process and scale video to match any input or output resolution. The scaling engines also allow for video cropping when using the MMA10G-TRXS for wall applications. Through its support for EDID, the MMA10G-TRXS will display the content correctly by setting and reading EDID tables to ensure the smoothest handoff between devices.
Fully integrated with Evertz' MAGNUM-AV Controller
The MMA10G-TRXS is a managed element of the MMA-10G network which is controlled by MAGNUM-AV. MAGNUM-AV simplifies management and control over the system and allows for simple user control using EvertzAV's virtual control panels and touch friendly graphical user interfaces (VUE) or via third-party control systems.
Remote Monitoring
The MMA10G-TRXS can be remotely monitored via the SNMP protocol using Evertz' award winning VistaLINK Pro NMS software suite. VistaLINK allows a single user from a single workstation complete visibility into the operation of the MMA-10G ecosystem. Users can prevent issues from becoming outages quickly and easily using Evertz' VistaLINK Pro.

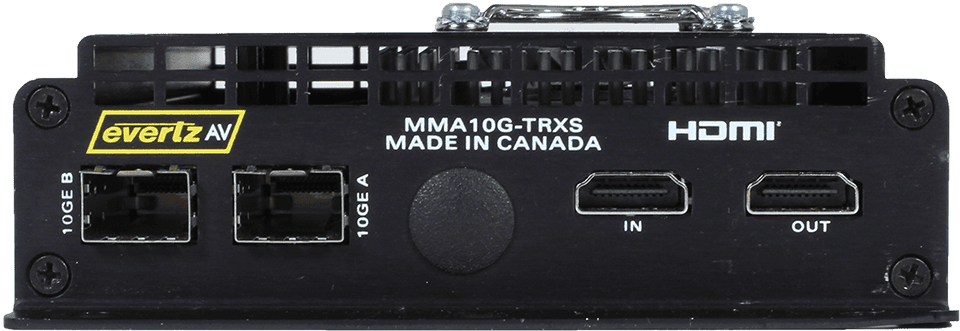

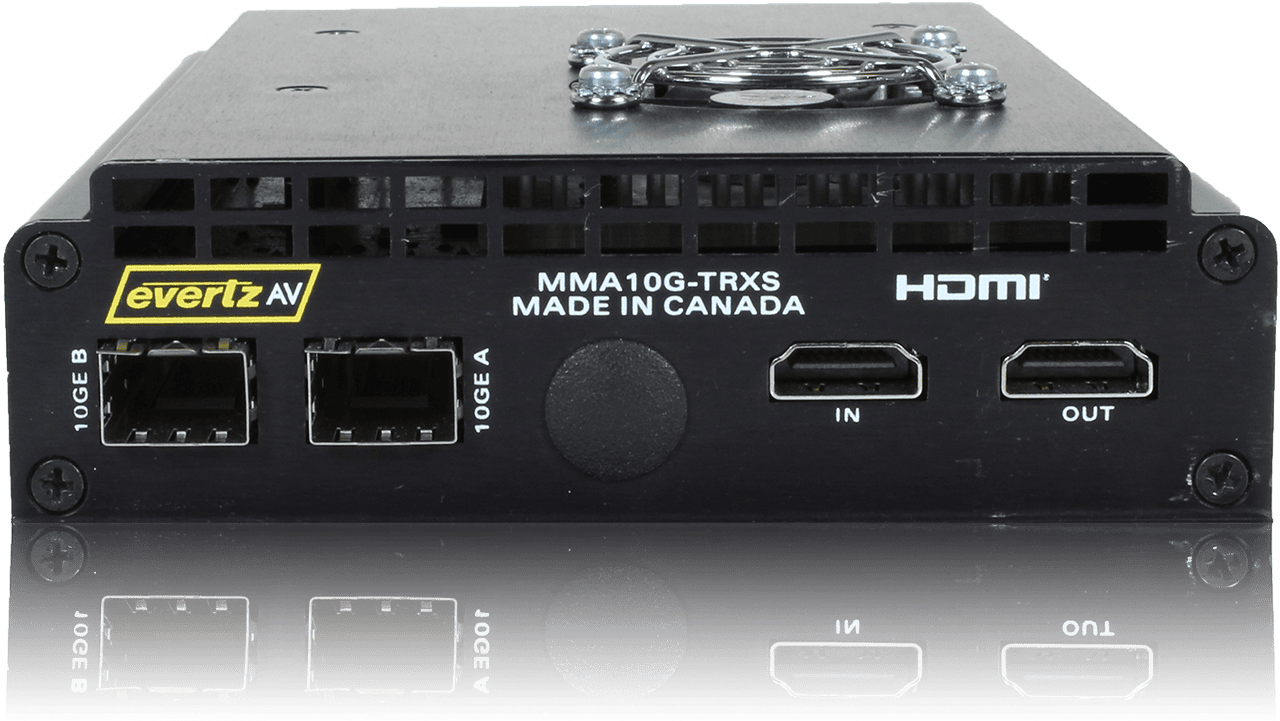

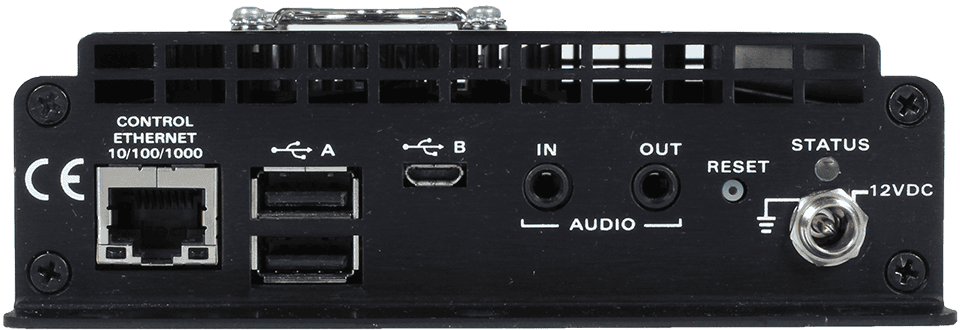

Product Images
Specifications
| MMA10G-TRXS | MMA10G-TRXS-S | |
|---|---|---|
| Video Inputs | 1 HDMI (type A) | 1 HDMI (type A) 1 SDI (BNC connector – software defined) |
| Video Outputs | 1 HDMI (type A) | 1 HDMI (type A) 1 SDI (BNC connector – software defined) |
| Supported Resolutions | Up to 3840x2160p @ 30 Hz | Up to 3840x2160p @ 30 Hz |
| Audio Inputs | 1 stereo unbalanced analog (3.5mm) | 1 stereo unbalanced analog (3.5mm) |
| Audio Input Impedance | 25K Ω | 25K Ω |
| Audio Input Level | Line level | Line level |
| Audio Outputs | 1 stereo unbalanced analog (3.5mm) | 1 stereo unbalanced analog (3.5mm) |
| Audio Output Impedance | 4 to 8 Ω | 4 to 8 Ω |
| Audio Output Level | Line level | Line level |
| Ethernet Transport | 10/100Base-T RJ45 Ethernet Port (IEEE 802.3) | 10/100Base-T RJ45 Ethernet Port (IEEE 802.3) |
| Ethernet Connector | RJ45 | RJ45 |
| USB | 2 HID device ports (type A) 1 HID host port (micro type B) |
2 HID device ports (type A) 1 HID host port (micro type B) |
| 10GE Ports | 2 SFP+ (see available accessories) | 2 SFP+ (see available accessories) |
| Output Scaling | Yes | Yes |
| Picture-in-Picture (PiP) Support | Yes | Yes |
| HDMI Audio | Yes | Yes |
| SNMP Support | Yes | Yes |
| In-Band Control | Yes | Yes |
| Control System | MAGNUM-AV | MAGNUM-AV |
| Web-Based Configuration | Yes | Yes |
| Security Compliance | Compliant with applicable DoD Network Devices Security Technical Implementation Guide (STIG) findings | Compliant with applicable DoD Network Devices Security Technical Implementation Guide (STIG) findings |
| DC Input Voltage | 12VDC via supplied power adapter | 12VDC via supplied power adapter |
| Power Supply | 100-240V / 47-63Hz AC input; 12VDC / 5A output | 100-240V / 47-63Hz AC input; 12VDC / 5A output |
| Power Consumption | 20W | 20W |
| Ambient Operating Temperature | 32° to 104° F (0° to 40° C) | 32° to 104° F (0° to 40° C) |
| Relative Humidity | 10% to 90% RH (non-condensing) | 10% to 90% RH (non-condensing) |
| Dimensions (H x W x D) | 1.7in x 4.93in x6.29in (43mm x 143mm x 199mm) | 1.7in x 4.93in x6.29in (43mm x 143mm x 199mm) |
| Weight | 12 oz (340.19 g) | 12 oz (340.19 g) |
Ordering Information
| MMA10G-TRXS | Standalone 10GE transceiver: single HDMI input, single HDMI output, analog audio, and USB (HID) |
|---|---|
| MMA10G-TRXS-S | Standalone 10GE transceiver: single HDMI input, single HDMI output, BNC connector for SDI input and output, analog audio, and USB (HID) |
Available Accessories
| MMA10G-SFP-TR85 | SFP+, 10GE, 850nm, MMF, 50/125, LC/LC |
|---|---|
| MMA10G-SFP2-TR13 | SFP+, 10GE, 1310nm, SMF, 9/125, LC/LC, 10km |
| MMA10G-SFP-SFP-MM3 | 3m SFP+ to SFP+ fiber patch cable, 10GE, AOC, 850nm |
