MMA25G-TRS4K-4x2U
Standalone 4K/60 HDMI/DisplayPort Transceiver w/ USB 2.0
Key Features
- Four HDMI 2.0A/mDP inputs and two HDMI 2.0A/mDP outputs
- Resolution up to 4096x2160p @ 60Hz, 4:4:4 color sampling
- Four proprietary EvertzAV USB 2.0 ports
- Ultra low latency transport over 25GE links
- Customizable EDID tables
- Full integration with MAGNUM-AV management system
- Remote monitoring capabilities using SNMP protocol
Standalone 4K HDMI/mDP Transceiver
The MMA25G-TRS4K-4x2U standalone 4K/60 HDMI transceiver accepts up to four HDMI/mDP inputs and provides up to two HDMI/mDP outputs, in addition to audio, and USB HID. The MMA25G-TRS4K-4x2U can transmit content from any two of the four local HDMI/mDP inputs with ultra low latency over its 25GbE links. It can also simultaneously receive content from the two network transports or four local HDMI/mDP inputs and send any of those two sources to the two HDMI/mDP outputs. The MMA25G-TRS4K-4x2U also offers USB 2.0 (Host or Device), which can be sent at full bandwidth over the 25GE interface. The MMA25G-TRS4K-4x2U is a standalone device which is compact quiet and can be installed in various in-room locations, including behind monitors, under/inside desks and lecterns, and floor boxes.
Versatile Switching Capabilities and More...
The abundance of AV sources that it can handle (i.e. from the two network transports and four local HDMI inputs) along with its two HDMI outputs also makes the MMA25G-TRS4K-4x2U an extremely versatile and compact in-room AV switcher. Customizable EDID tables and scaling on the output paths insure the smoothest handoff between sources and sinks.
Remote Monitoring
The MMA25G-TRS4K-4x2U can be remotely monitored via the SNMP protocol using EvertzAV's award winning VistaLINK Pro NMS software suite. VistaLINK allows a single user from a single workstation complete visibility into the operation of the MMA-25G ecosystem. Users can prevent issues from becoming outages quickly and easily using EvertzAV's VistaLINK Pro.
Fully Integrated with MAGNUM-AV Controller
The MMA25G-TRS4K-4x2U is a managed element of the MMA-25G network which is controlled by MAGNUM-AV. MAGNUM-AV simplifies management and control over the system and allows for simple user control using EvertzAV's virtual control panels and touch friendly graphical user interfaces (VUE) or via third-party control systems.

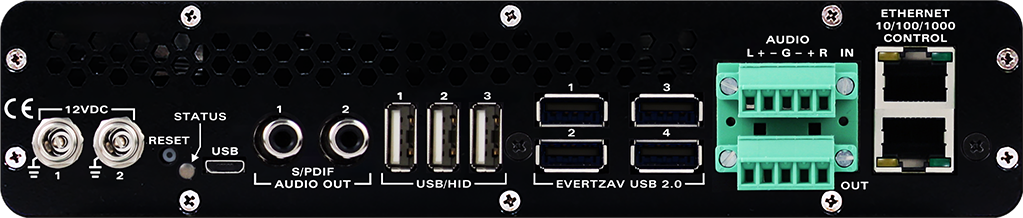

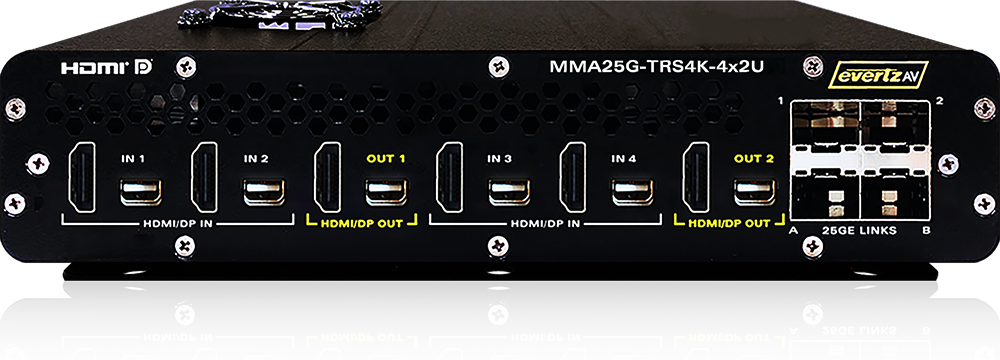

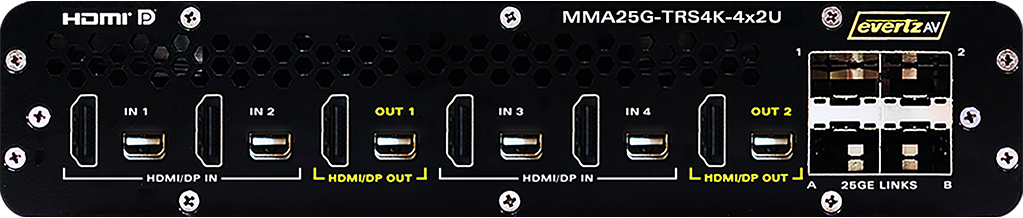

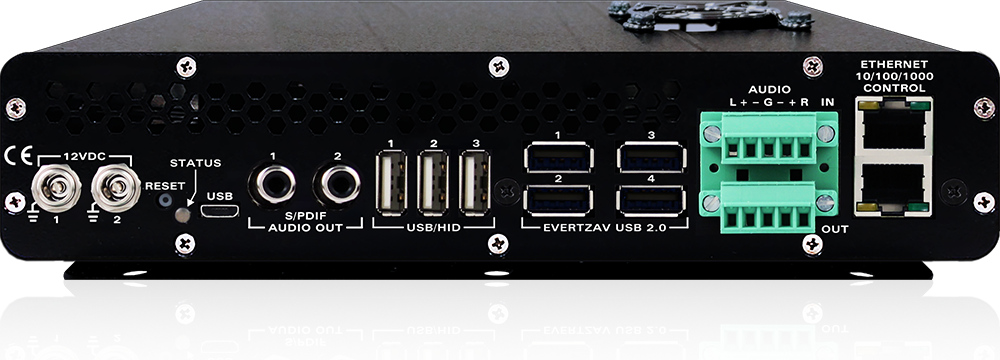

Product Images
Specifications
| MMA25G-TRS4K-4x2U | |
|---|---|
| Video Inputs | 4 HDMI 2.0A or 4 Mini DisplayPort |
| Video Outputs | 2 HDMI 2.0A or 2 Mini DisplayPort |
| Supported Resolutions | Up to 4096x2160p @ 60Hz (4:4:4 color sampling) |
| HDMI Audio | LPCM (up to 8 channels) Passthrough and support for Dolby Digital®/AC-3, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS-ES, DTS-HD High Res, DTS-HD Master Audio, DTS:X |
| Other Audio Inputs | 1 stereo balanced analog (terminal header), high impedance line level (+4dBu) |
| Audio Outputs | 1 stereo balanced analog (terminal header), 600Ω impedance line level (+4dBu) 2s/PDIF |
| USB | 3 HID device ports (type A) 1 HID host port (micro type B) 4 proprietary EvertzAV USB 2.0 ports (type A) |
| Control Port (Out-of-Band) | 10/100/1000 BASE-T RJ45 Ethernet Port (IEEE 802.3) |
| Transport Port | 2x SFP+ cages (see available accessories) |
| 25G Redundancy | Yes |
| Output Scaling | Yes |
| SNMP Support | Yes |
| In-Band Control | Yes |
| Control System | MAGNUM-AV |
| Web-Based Configuration | Yes |
| Security Compliance | Compliant with applicable DoD Network Devices Security Technical Implementation Guide (STIG) findings |
| DC Input Voltage | 12V DC via supplied power adapter |
| Power Supply | 100-240V / 47 – 63Hz AC input; 12V DC / 5A output |
| Power Consumption | TBD |
| Operating Temperature | 32° to 104° F (0° to 40° C) |
| Relative Humidity | 10% to 90% RH (non-condensing) |
| Dimensions (H x W x D) | 1.81in x 8.25in x 6.56in (45.97mm x 209.55mm x 166.62mm) |
| Weight | TBD |
Ordering Information
| MMA25G-TRS4K-4x2U | Standalone 4K/60 dual HDMI gateway: 4 HDMI/mDP inputs, 2 HDMI/mDP outputs, 3 HID device ports, 1 HID host port, 4 proprietary EvertzAV USB 2.0 ports, 2 analog balanced audio inputs, 2 analog balanced audio outputs, 2s/PDIF audio outputs, dual redundant 12V inputs, 2 25G SFP links, and Ethernet Control port. |
|---|
Available Accessories
| MMA25G-SFPT-TR13 | 25Gbps Single-mode fiber SFP+, 1310nm (10Km), LC/LC UPC. TAA compliant. Recommended fiber type: 9/125µm. |
|---|
