MMA25G-TRS4K-2x2A
Standalone IPMX-Ready 4K/60 HDMI/DisplayPort Transceiver w/ Dante™ Audio
Key Features
- Two HDMI 2.0A/mDP inputs and two HDMI 2.0A/mDP outputs
- Resolution up to 4096x2160p @ 60Hz, 4:4:4 color sampling
- 32x32 Dante Audio module
- Ultra low latency transport over 25GE links
- Customizable EDID tables
- Full integration with MAGNUM-AV management system
- Remote monitoring capabilities using SNMP protocol
Standalone 4K HDMI/mDP Transceiver
The MMA25G-TRS4K-2x2A standalone 4K/60 HDMI transceiver accepts up to two HDMI/mDP inputs and provides up to two HDMI/mDP outputs, in addition to audio, and USB HID. The MMA25G-TRS4K-2x2A can transmit content from the two local HDMI/mDP inputs with ultra low latency over its 25GbE links. It can also simultaneously receive content from the two network transports or two local HDMI/mDP inputs and send any of those two sources to the two HDMI/mDP outputs. The MMA25G-TRS4K-2x2A is a standalone device which is compact and quiet and can be installed in various in-room locations, including behind monitors, under/inside desks and lecterns, and floor boxes.
Integrated 32x32 Dante Audio Module
In addition to its HDMI/DisplayPort, analog, and S/PDIF audio capabilities, the MMA25G-TRS4K-2x2A supports Dante audio, facilitating up to 32x32 simultaneous Dante audio streams. This allows for local HDMI-embedded or remote IP-ingested audio streams to be routed as Dante audio or vice versa (i.e. Dante audio streams to be routed to the local HDMI output port or transported via IP to remote destinations).
Remote Monitoring
The MMA25G-TRS4K-2x2A can be remotely monitored via the SNMP protocol using EvertzAV's award winning VistaLINK Pro NMS software suite. VistaLINK allows a single user from a single workstation complete visibility into the operation of the MMA-25G ecosystem. Users can prevent issues from becoming outages quickly and easily using EvertzAV's VistaLINK Pro.
IPMX - Bringing ProAV and Broadcast Closer Together
The MMA25G-TRS4K-2x2A is a gateway that conforms to the emerging AV-over-IP open standard IPMX and, as such, complies with the suite of standards detailed in SMPTE ST 2110 and supports features such as JPEG-XS, AES67, and PTP. EvertzAV's line of IPMX-ready gateways provide synchronized, real-time broadcast-quality AV over IP while ensuring the ProAV interoperability requirements of today and tomorrow are met.
Fully Integrated with MAGNUM-AV Controller
The MMA25G-TRS4K-2x2A is a managed element of the MMA-25G network which is controlled by MAGNUM-AV. MAGNUM-AV simplifies management and control over the system and allows for simple user control using EvertzAV's virtual control panels and touch friendly graphical user interfaces (VUE) or via third-party control systems.

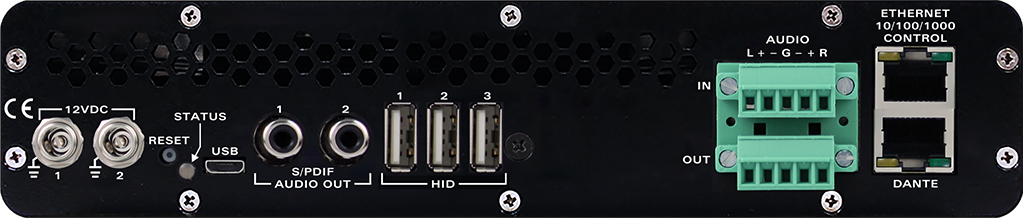

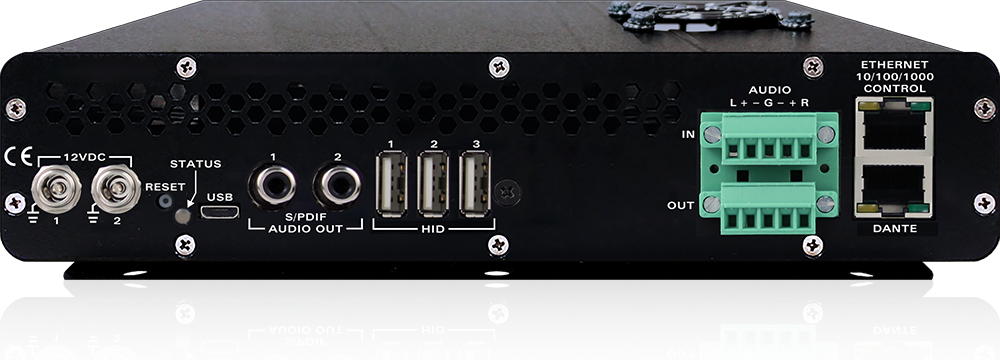

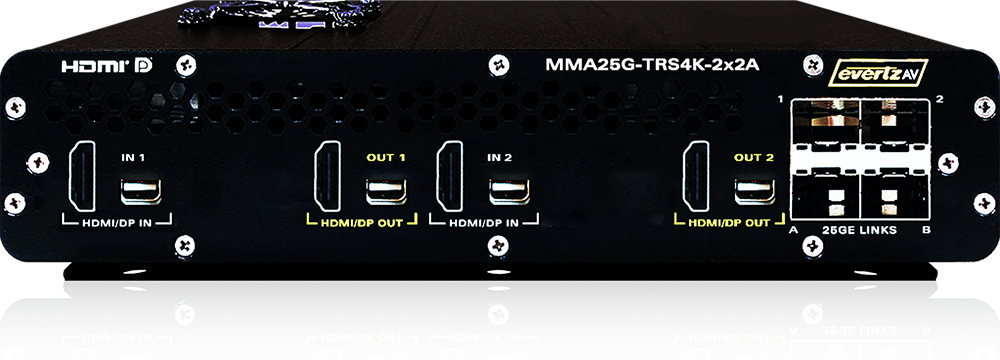

Product Images
Specifications
| MMA25G-TRS4K-2x2A | |
|---|---|
| Video Inputs | 2 HDMI 2.0A or 2 Mini DisplayPort |
| Video Outputs | 2 HDMI 2.0A or 2 Mini DisplayPort |
| Supported Resolutions | Up to 4096x2160p @ 60Hz (4:4:4 color sampling) |
| Dante Audio | Supports 32x32 simultaneous Dante audio streams |
| HDMI Audio | LPCM (up to 8 channels) Passthrough and support for Dolby Digital®/AC-3, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS-ES, DTS-HD High Res, DTS-HD Master Audio, DTS:X |
| Other Audio Inputs | 1 stereo balanced analog (terminal header), high impedance line level (+4dBu) |
| Audio Outputs | 1 stereo balanced analog (terminal header), 600Ω impedance line level (+4dBu) 2s/PDIF |
| USB | 3 HID device ports (type A) 1 HID host port (micro type B) |
| Control Port (Out-of-Band) | 10/100/1000 BASE-T RJ45 Ethernet Port (IEEE 802.3) |
| Transport Port | 2x SFP+ cages (see available accessories) |
| 25G Redundancy | Yes |
| Output Scaling | Yes |
| SNMP Support | Yes |
| In-Band Control | Yes |
| Control System | MAGNUM-AV |
| Web-Based Configuration | Yes |
| Security Compliance | Compliant with applicable DoD Network Devices Security Technical Implementation Guide (STIG) findings |
| DC Input Voltage | 12V DC via supplied power adapter |
| Power Supply | 100-240V / 47 – 63Hz AC input; 12V DC / 5A output |
| Power Consumption | TBD |
| Operating Temperature | 32° to 104° F (0° to 40° C) |
| Relative Humidity | 10% to 90% RH (non-condensing) |
| Dimensions (H x W x D) | 1.81in x 8.25in x 6.56in (45.97mm x 209.55mm x 166.62mm) |
| Weight | TBD |
Ordering Information
| MMA25G-TRS4K-2x2A | Standalone 4K/60 dual HDMI gateway with IPMX support: 2 HDMI/mDP inputs, 2 HDMI/mDP outputs, 3 HID device ports, 1 HID host port, 2 analog balanced audio inputs, 2 analog balanced audio outputs, 2s/PDIF audio outputs, Dante audio inputs/outputs, dual redundant 12V inputs, 2 25G SFP links, and Ethernet Control port. |
|---|
Available Accessories
| MMA25G-SFPT-TR13 | 25Gbps Single-mode fiber SFP+, 1310nm (10Km), LC/LC UPC. TAA compliant. Recommended fiber type: 9/125µm. |
|---|
