MMA25G-TRS4K
Standalone IPMX-Ready 4K/60 HDMI/DisplayPort Transceiver
Key Features
- One HDMI 2.0A/mDP input and one HDMI 2.0A/mDP output
- Resolution up to 4096x2160p @ 60Hz, 4:4:4 color sampling
- Ultra low latency transport over 25GE links
- Customizable EDID tables
- Full integration with MAGNUM-AV management system
- Remote monitoring capabilities using SNMP protocol
Standalone 4K HDMI/mDP Transceiver
The MMA25G-TRS4K standalone 4K/60 HDMI transceiver accepts one HDMI/mDP input and provides one HDMI/mDP output, in addition to audio, and USB HID. The MMA25G-TRS4K can transmit content from the local HDMI/mDP input with ultra low latency over its 25GbE links. It can also simultaneously receive content from the two network transports or local HDMI/mDP input and send any one of those sources to the HDMI/mDP output. The MMA25G-TRS4K is a standalone device which is compact and quiet and can be installed in various in-room locations, including behind monitors, under/ inside desks and lecterns, and floor boxes.
Remote Monitoring
The MMA25G-TRS4K can be remotely monitored via the SNMP protocol using EvertzAV's award winning VistaLINK Pro NMS software suite. VistaLINK allows a single user from a single workstation complete visibility into the operation of the MMA-25G ecosystem. Users can prevent issues from becoming outages quickly and easily using EvertzAV's VistaLINK Pro.
IPMX - Bringing ProAV and Broadcast Closer Together
The MMA25G-TRS4K is a gateway that conforms to the emerging AV-over-IP open standard IPMX and, as such, complies with the suite of standards detailed in SMPTE ST 2110 and supports features such as JPEG-XS, AES67, and PTP. EvertzAV's line of IPMX-ready gateways provide synchronized, real-time broadcast-quality AV over IP while ensuring the ProAV interoperability requirements of today and tomorrow are met.
Fully Integrated with MAGNUM-AV Controller
The MMA25G-TRS4K is a managed element of the MMA-25G network which is controlled by MAGNUM-AV. MAGNUM-AV simplifies management and control over the system and allows for simple user control using EvertzAV's virtual control panels and touch friendly graphical user interfaces (VUE) or via third-party control systems.

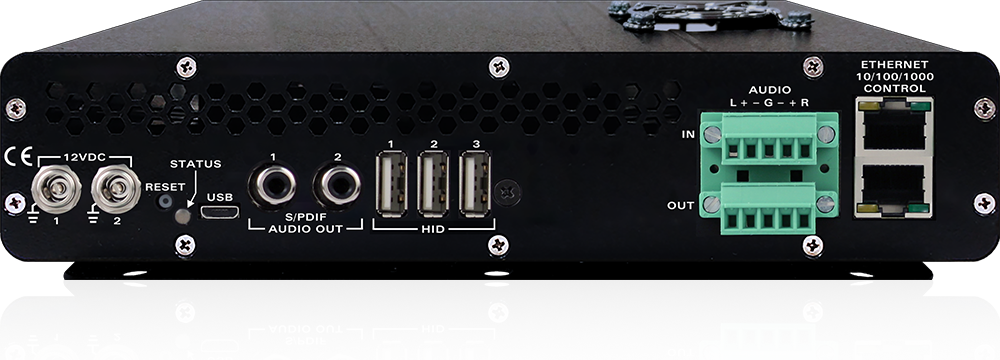

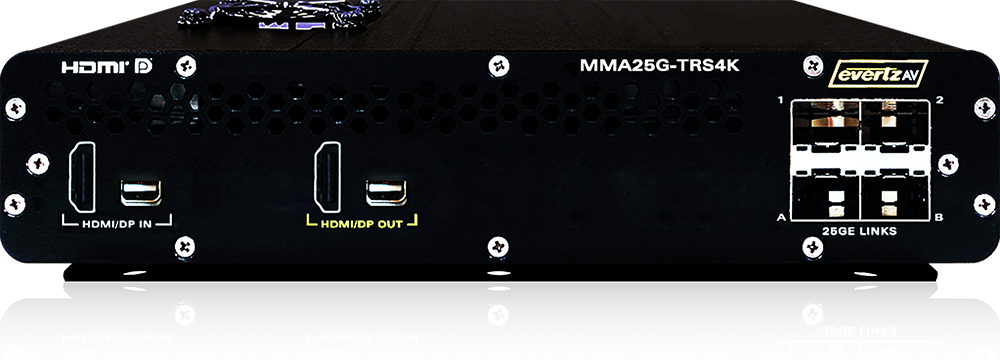

Product Images
Specifications
| MMA25G-TRS4K | |
|---|---|
| Video Inputs | 1 HDMI 2.0A or 1 Mini DisplayPort |
| Video Outputs | 1 HDMI 2.0A or 1 Mini DisplayPort |
| Supported Resolutions | Up to 4096x2160p @ 60Hz (4:4:4 color sampling) |
| HDMI Audio | LPCM (up to 8 channels) Passthrough and support for Dolby Digital®/AC-3, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS-ES, DTS-HD High Res, DTS-HD Master Audio, DTS:X |
| Other Audio Inputs | 1 stereo balanced analog (terminal header), high impedance line level (+4dBu) |
| Audio Outputs | 1 stereo balanced analog (terminal header), 600Ω impedance line level (+4dBu) 2s/PDIF |
| USB | 3 HID device ports (type A) 1 HID host port (micro type B) |
| Control Port (Out-of-Band) | 10/100/1000 BASE-T RJ45 Ethernet Port (IEEE 802.3) |
| Transport Port | 2x SFP+ cages (see available accessories) |
| 25G Redundancy | Yes |
| Output Scaling | Yes |
| SNMP Support | Yes |
| In-Band Control | Yes |
| Control System | MAGNUM-AV |
| Web-Based Configuration | Yes |
| Security Compliance | Compliant with applicable DoD Network Devices Security Technical Implementation Guide (STIG) findings |
| DC Input Voltage | 12V DC via supplied power adapter |
| Power Supply | 100-240V / 47 – 63Hz AC input; 12V DC / 5A output |
| Power Consumption | TBD |
| Operating Temperature | 32° to 104° F (0° to 40° C) |
| Relative Humidity | 10% to 90% RH (non-condensing) |
| Dimensions (H x W x D) | 1.81in x 8.25in x 6.56in (45.97mm x 209.55mm x 166.62mm) |
| Weight | TBD |
Ordering Information
| MMA25G-TRS4K | Standalone 4K/60 single HDMI gateway with IPMX support: 1 HDMI/mDP inputs, 1 HDMI/mDP outputs, 3 HID device ports, 1 HID host port, 2 analog balanced audio inputs, 2 analog balanced audio outputs, 2s/PDIF audio outputs, dual redundant 12V inputs, 2 25G SFP links, and Ethernet Control port. |
|---|
Available Accessories
| MMA25G-SFPT-TR13 | 25Gbps Single-mode fiber SFP+, 1310nm (10km), LC/LC UPC. TAA compliant. Recommended fiber type: 9/125µm. |
|---|
