EV-PTZ-4K-12G
4K 12G-SDI/HDMI PTZ Camera
Key Features
- 4K, 1080p, and 720p resolution support
- 12G-SDI and HDMI video outputs
- Professional 1/1.8" Sony® sensor (with 30x optical zoom)
- AI-enabled facial recognition autofocus system
- FreeD protocol support for live VR/AR production
- RTSP, RTMP, RTMPS, MPEG-TS, and SRT protocol support
- 802.3bt Type 3 PoE++ support
- High-speed, smooth, and judder-free pan and tilt controls up to 300° per second
4K 12G-SDI/HDMI PTZ Camera
EvertzAV's EV-PTZ-4K-12G is an ultra-high-quality proAV 4K IP pan, tilt, and zoom camera. Paired with a low distortion professional zoom lens, the camera's large (1/1.8") CMOS sensor produces superb 4K and HD results. Its excellent color reproduction and 12G-SDI and HDMI video outputs mean it's a great choice for productions where image quality is of the highest importance. The EV-PTZ-4K-12G is a practical solution for broadcasting, video production, lecture recording, and live events.
FreeD Support - Live VR/AR Video Production
The EV-PTZ-4K-12G supports the increasingly popular FreeD protocol, which outputs the camera's positional data over IP in real-time. This enables users to work with state-of-the-art Virtual Reality (VR) and Augmented Reality (AR) sets without the need for additional sensors.
Advanced Facial Recognition Autofocus System
The EV-PTZ-4K-12G is also equipped with a state-of-the-art facial recognition autofocus system. As such, the EV-PTZ-4K-12G can intelligently identify human faces and automatically detect the eyes and mouth. This enables the camera to keep the subject in sharp focus all the time.
Easy to Operate and High-Precision Camera Controls
With a top-mounted tally light, the EV-PTZ-4K-12G notifies the crew and talent which camera is currently in use. It provides clear communication and is especially useful in multi-camera productions and broadcast studios. With high-precision motor control and an advanced transmission mechanism, the EV-PTZ-4K-12G achieves high-speed pan and tilt at up to 300° per second. Camera movement is smooth and judder-free, even at low speeds.

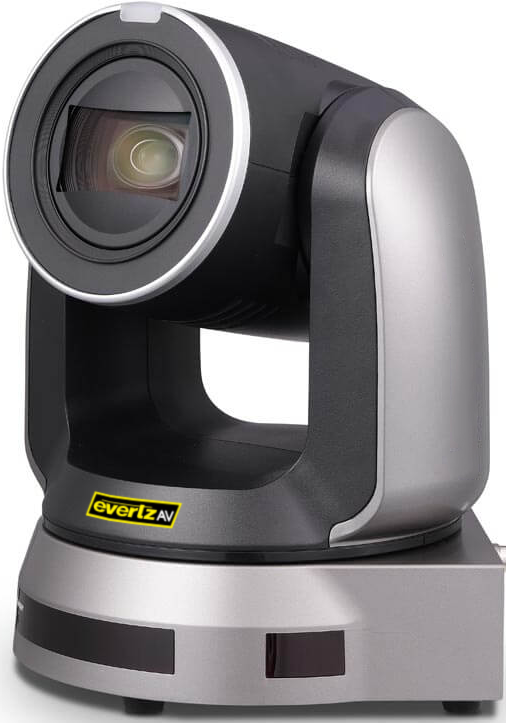

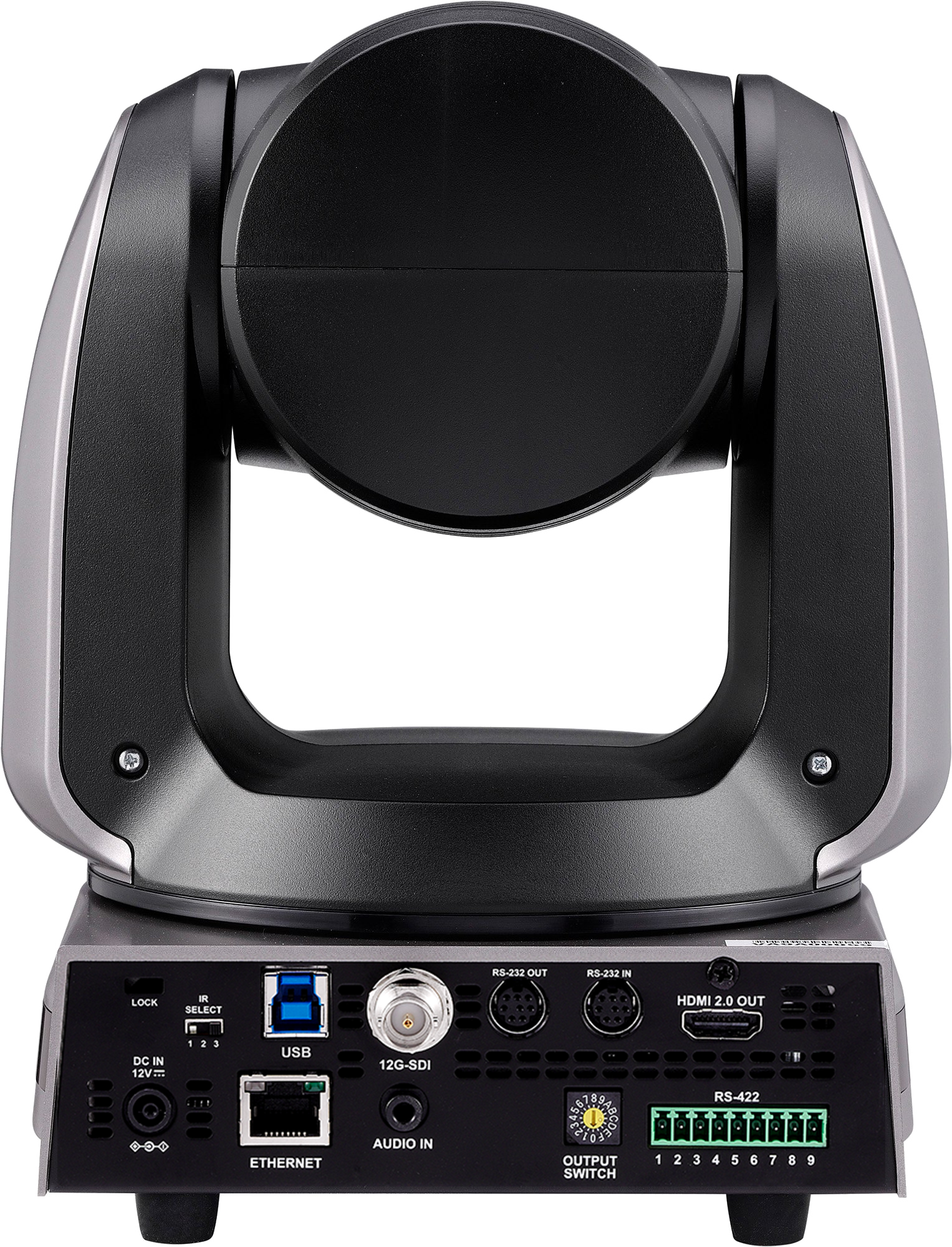

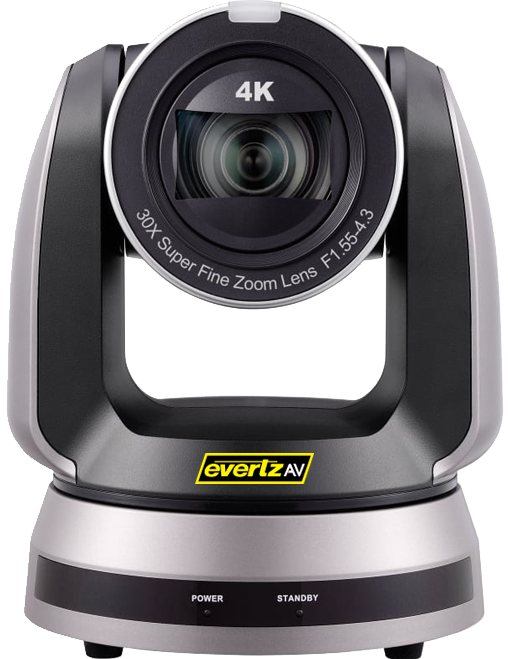

Product Images
Specifications
| EV-PTZ-4K-12G | |
|---|---|
| Image Sensor | 1/1.8" 9.17 MP CMOS |
| Video Format | 2160p: 59.94 / 50 / 29.97 / 25 1080p: 59.94 / 50 / 29.97 / 25 1080i: 59.94 / 50 720p: 59.94 / 50 / 29.97 / 25 |
| Video Output (HD) Interface | 12G-SDI / HDMI 2.0 / Ethernet / USB 3.0 |
| Optical Zoom / Digital Zoom | 30x / 12x |
| Viewing Angle | 63° (H) 35.4° (V) 72.3° (D) |
| Aperture | F1.6 to F4.8 |
| Focal Length | 6.5mm to 202mm |
| Shutter Speed | 1/1 to 1/10,000 sec |
| Minimum Object Distance | 1.5m (Wide/Tele) |
| Video S/N Ratio | >50dB |
| Minimum Illumination | 0.05 lux (F1.6, 50IRE, 30fps) |
| Focus System | Auto / Manual / Smart AF |
| Gain Control | Auto / Manual |
| White Balance | Auto / Manual |
| Exposure Control | Auto / Manual |
| WDR | Yes |
| 3D NR | Yes |
| Image Flip | Yes |
| Color Space | Standard / BT.2020 / REC.709 |
| AR/VR Systems | FreeD |
| Tally Light | Yes |
| Panning Angle | +170° to -170° |
| Panning Speed | 300°/sec |
| Tilting Angle | +90° to -30° |
| Tilting Speed | 300°/sec |
| Preset Positions | 256 |
| HDMI / 12G-SDI Output | 2160p59.94 |
| IP Streaming Protocol | RTSP / RTMP/RTMPS / MPEG-TS / SRT |
| IP Stream Encoder/Decoder | HEVC (H.265) / H.264 Note: Applicable to all IP streaming protocols except RTMP/RTMPS (H.264 only) |
| IP Stream Output | HEVC 4K 59.94fps / H.264 1080p 59.94fps / H.264 640x360 29.97fps |
| Number of IP Streams | Up to 3 |
| USB Compression | H.264 / MJPEG |
| USB Output | H.264 4K30fps / MJPEG 1080p30 |
| PoE | PoE++ (IEEE802.3bt) |
| Audio Input | Line In / MIC In, Phone Jack 3.5mm x1 |
| Audio Output | Ethernet / 12G-SDI / HDMI 2.0 |
| Audio Compression Format | G.71 1 |
| Camera Control Interface | RS-232 / RS-422 / Ethernet / USB 3.0 / Remote |
| Camera Control Protocol | VISCA / VISCAIP / PELCO D / ONVIF / UVC 1.1 / UAC |
| Power Input | DC 12V +/- 20% or PoE++ |
| Power Consumption | PoE: 27.5W / DC In: 27W |
| Dimension | 9.2in x 7.4in x 7.4in (232mm x 188mm x 189mm) |
| Weight | 6.6 lbs (3 kg) |
Ordering Information
| EV-PTZ-4K-12G | 4K IP PTZ camera with 12G-SDI and HDMI video outputs, analog audio, USB 3.0, RS-232, RS-422, and PoE++ |
|---|
