ATOM-Box

Compact USB Recorder and Streaming Encoder

ATOM-Box

Compact USB Recorder and Streaming Encoder

Key Features

  • Simple-to-use USB recorder
  • High quality H.264 codec
  • Video and audio recording
  • Streaming encoder with MPEG-4 and TS files
  • TS over TCP/UDP (unicast and multicast)
  • RTSP over HTTP/TCP/UDP, RTMP, and HLS
  • Low latency < 0.3s
  • Up to 1080p60 fps
  • HD/SD–SDI, DVI, VGA, YUV, AV, HDMI, and analog audio inputs
  • Easily accessible front buttons for fast use
  • Recording at up to 16Mb/s

Download the ATOM-Box datasheet

The ATOM–Box is a versatile USB recorder and streaming encoder in a compact form factor. Designed for multiple AV applications it allows low cost recording of sport, studio productions, compliance video, and music on to a USB drive as H.264 encoded MPEG–4 files. These files can be played back on virtually any computer, mobile device, and modern smart TVs, making this file format an almost universal playback medium.

The ATOM–Box is also a high quality streaming encoder that can stream files to the Internet for others to view live while also making a recording — it's one box with two functions! It is fully equipped with a full range of input interfaces including HD/SD–SDI, DVI, VGA, YUV, AV and HDMI.

Extremely Flexible and Simple-To-Use

The ATOM–Box a flexible platform that can be used as a standalone device or rack mounted in a 1RU chassis when multiple recorders are required. One of its many benefits is that it's simple to use; insert a USB drive, press the REC/ STOP button for instant recording, then press it again to stop. For streaming video and audio, press the STREAM/STOP button for live video over IP. For optimizing recording and streaming performance, a simple Web UI is available for accessing the ATOM-Box's recording and streaming parameters.

High-Quality Encoding and Optimized Streaming

The use of the H.264 codec ensures high-quality recordings encoded as MPEG–4 files with impressive video and audio quality for resolutions of up to 1920x1080p/60 with AAC audio bit rates up to 384 kHz and a sample rate of 48 kHz at 16–bit. The Web UI provides adjustable bit rate, standard or high profile MPEG–4 or TS, and users can further optimize the TS transport stream signals for streaming such as TCP/UDP (unicast or multicast), RTSP over HTTP/TCP/UDP in the form of elementary stream, RTMP (local or publish), and HLS.

A Low Cost, Versatile, and Compact Solution

The ATOM–Box is a highly affordable, versatile, and compact USB recorder with a flexible design that accepts a wide range of analog and digital video signals, enabling simultaneous recording and streaming.

Product Images

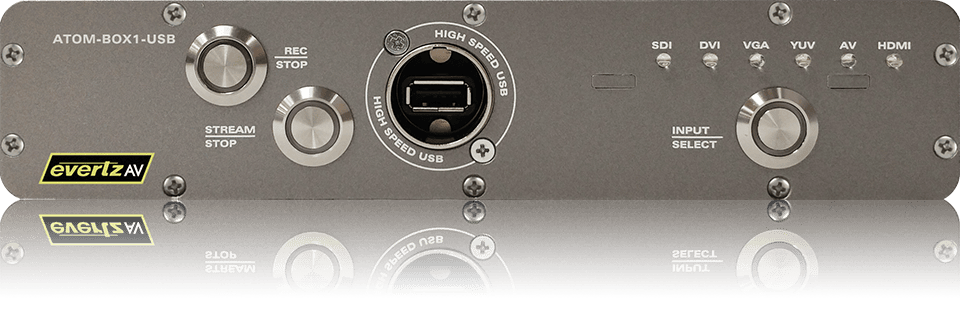

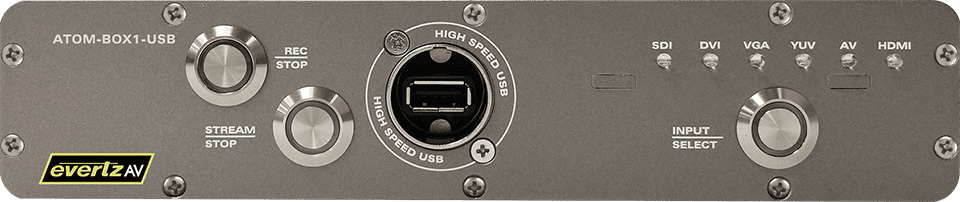

ATOM-Box Front View

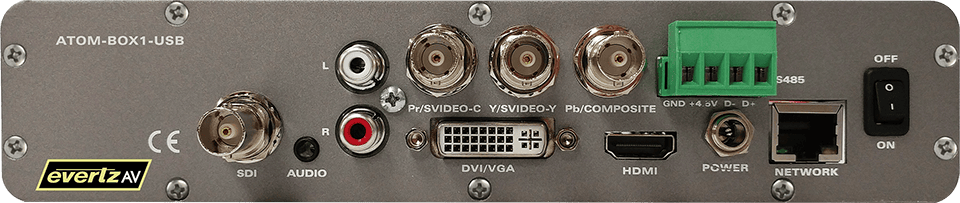

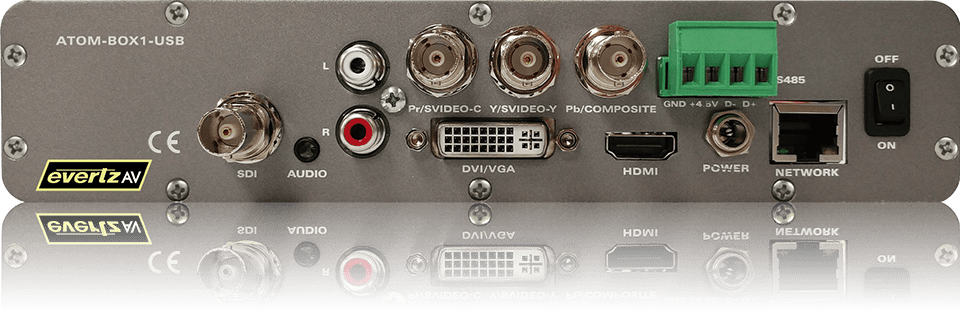

ATOM-Box Rear View

Specifications

ATOM-Box
USB USB 2.0, high speed, >15 Mb/s sustained data rate
Codec H.264/AVC, baseline, main, or high profile
Latency <0.3s (RTSP/UDP streaming)
Bitrate Preset for 3 Mb/s, user adjustable up to 16Mb/s via Web UI
File Format TS or MPEG–4 with AAC audio
Audio Codec 32-384 Kbps, sample rate 48 kHz at 16-bit
Video Inputs 1x HD/SD-SDI, 1x DVI, 1x VGA, 1x YUV, 1x AV, 1x HDMI
Supported Input Formats 1920×1080 (p60/p50/P30/p25/p24/i60/i50), 1280×720 (p60/p50), 1280×1024 (p60), 1280×960 (p60), 1024×768 (p60), 800×600 (p60), 720×480 (p60/i60), 640×480 (p60), 720×576 (p50/i50)
Supported Output Formats Resize range from 128x128 to 1920x1080 (p60)
Audio Inputs 2x RCA, 1x 3.5mm connector (stereo)
Control Ethernet 1x RJ-45, 10/100 Mb/s
Power Input 10V–24VDC on 2.5mm connector with screw lock
Power Consumption 15W
Dimensions (W x H x D) 6.3in x 1.7in x 4.7in (160mm x 44mm x 120mm)
Weight 1.10 lbs (0.5kg)

Ordering Information

ATOM-BOX1-USB Compact USB recorder and streaming encoder
